HT500

SPECIFICATIONS:

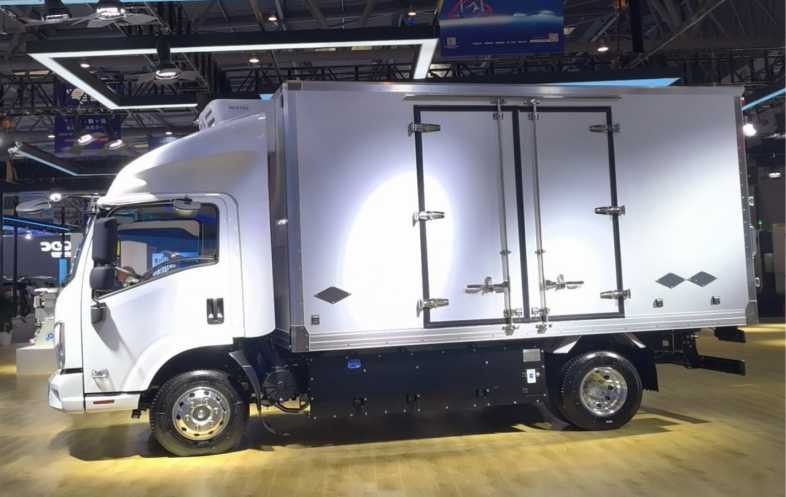

The vehicle adopts a second-class chassis, and the incubator and the vehicle hydrogen bottle cover are integrated to achieve a larger incubator volume. At the same time, advanced thermal insulation materials are used, and efficient chillers are installed, which can achieve rapid refrigeration to -20℃, ensuring low refrigeration energy consumption and good thermal insulation capacity, and suitable ...

Overall Dimensions: 7083x2326x3210mm
Wheel-Base: 3815mm
Maximum speed: 90Km/h
Range(CLTC conditin): 551 km
Hydrogen storage capacity: 165L*3

INQUIRY NOW

Product Details

Vehicle Name H2 Fuel Cell Truck H2 Fuel Cell Refrigerated Truck

Cab Form Single Row Single Row

Overall Dimensions 7083x2326x3210mm 7090x2340x3180mm

Container Size 4500x2250x2150mm 4370x2200x2100mm

Wheel-Base 3815mm 3815mm

Maximum Speed 90km/h 90km/h

Maximum Gradient 25° 25°

Load Weight 3305 2995

Weight 4780 5090

Full Load Constant Speed Range Comprehensive: 551 km Comprehensive: 500 km

Power Battery Charge 47.69kwh(50 km emergency range provided) 47.69kwh(50 km emergency range provided)

Transmission Gear 2 2

H2 fuel cell system rated power 70kw 70kw

H2 Storage System 35Mpa 35Mpa

165L3 165L3

Drive Motor 160/89kw 160/89kw

950N.m 950N.m

Vehicle Name	H2 Fuel Cell Truck	H2 Fuel Cell Refrigerated Truck
Cab Form	Single Row	Single Row
Overall Dimensions	7083x2326x3210mm	7090x2340x3180mm
Container Size	4500x2250x2150mm	4370x2200x2100mm
Wheel-Base	3815mm	3815mm
Maximum Speed	90km/h	90km/h
Maximum Gradient	25°	25°
Load Weight	3305	2995
Weight	4780	5090
Full Load Constant Speed Range	Comprehensive: 551 km	Comprehensive: 500 km
Power Battery Charge	47.69kwh(50 km emergency range provided)	47.69kwh(50 km emergency range provided)
Transmission Gear	2	2
H2 fuel cell system rated power	70kw	70kw
H2 Storage System	35Mpa	35Mpa
	165L*3	165L*3
Drive Motor	160/89kw	160/89kw
	950N.m	950N.m
